What type of videos would you like to see more of?
iPhones?
iPads?
or Android/Samsung phones?
We get an even mix of these devices & I'm never too sure what device type will get me more views 😁
Let me know your thoughts down below! 👇
If you have a Seek Thermal Cam, you're missing out if you don't have a VCC Seek Stand: https://www.vccboardrepairs.com/buy-seek-stand
Injured Gadgets just got these back in stock, so get them while you can!
It can take us a while to build these out sometimes, so they're sometimes out of stock for a while, but we're working towards always having inventory ready to build more as they sell out.
This stand makes using a thermal cam so easy. So much better than any other thermal solution on the market.
It allows you to get real close up (using my Macro Lens), and easily find where the short is coming from.
Plus it's hard free, so you can have your hands free to try to boot the device from DCPS, while having an image that is in focus & not moving around.
You can even record a video through the app, while you inject voltage into the short, so you can go back & see exactly which component was it that was heating up.
Save yourself lots of time by getting a Seek Cam, Stand & Macro Lens! ...
Anyone who is doing game console repairs, knows how many screws you need to remove to access the motherboard.
Especially the PS5, with the 5,000 screws or so.
If you don't already have an electric screwdriver, GET ONE ASAP.
🌟 Cordless Screwdriver with T9 Bit: https://amzn.to/3E5duCj
🌟Extended T9 Bit: https://amzn.to/3c4YJac
It's rechargeable through micro USB and allows you to easily swap the tips out. You can also fold it to be straight or L shape.
Let me know below if you are already using an electric screwdriver 👇👇
Basically, all USB flash drive will have USB 2.0 pins. That's just 4 lines that you need for USB communication.
If it's a USB 3.0 drive, it will have those 4 pins + the extra 3.0 data pins

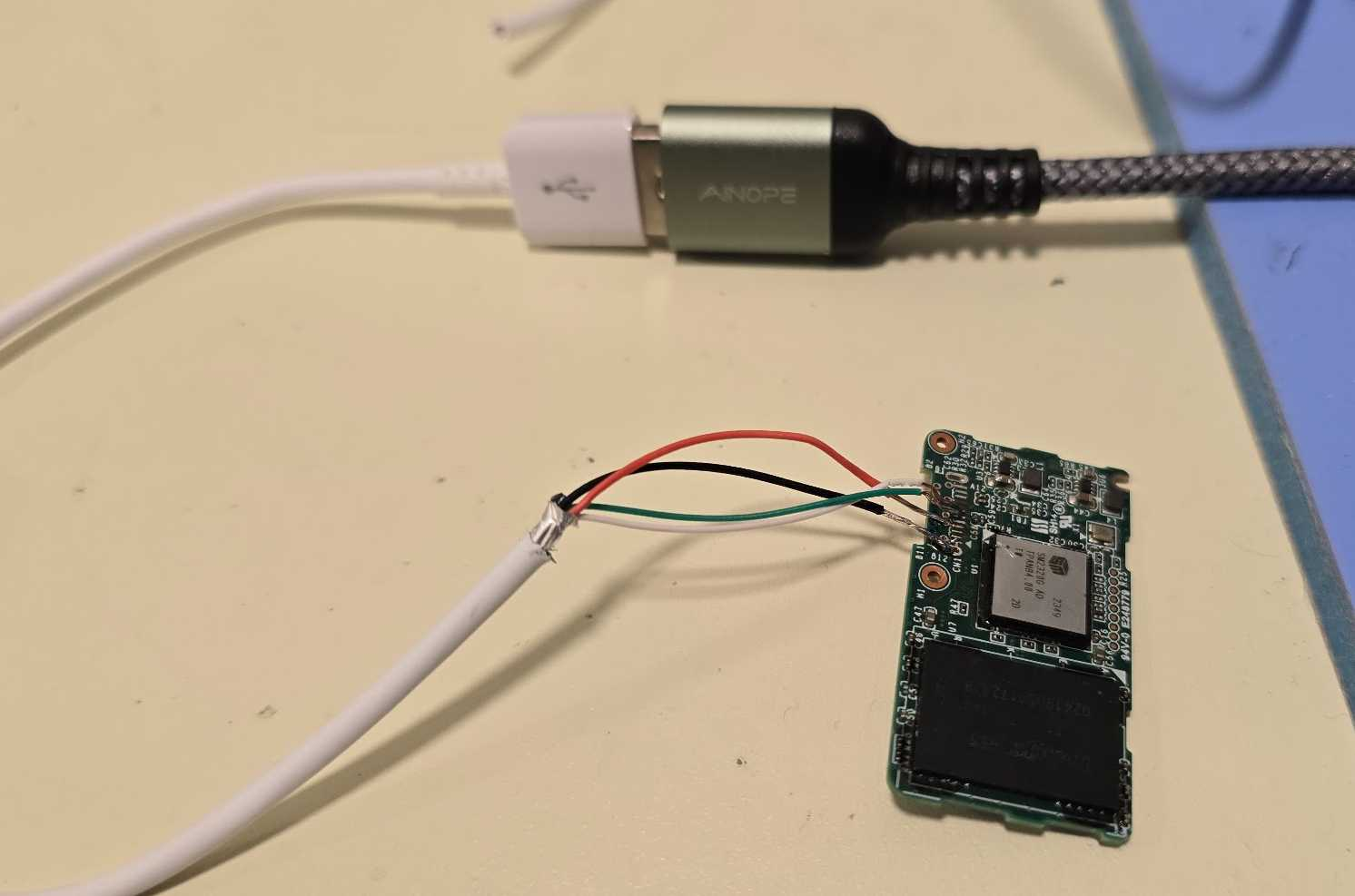

Get any USB A cable & splice it to find the 4 wires, Black, Red, Green, White. Then proceed with the next steps:
Find the 5V power rail, which typically is a thick trace or there's a duplicate pin. I found that by probing around & found the 2 pins that had continuity to each other
Ground is just any anchor
Then the tricky part was the 2 data lines, green & white

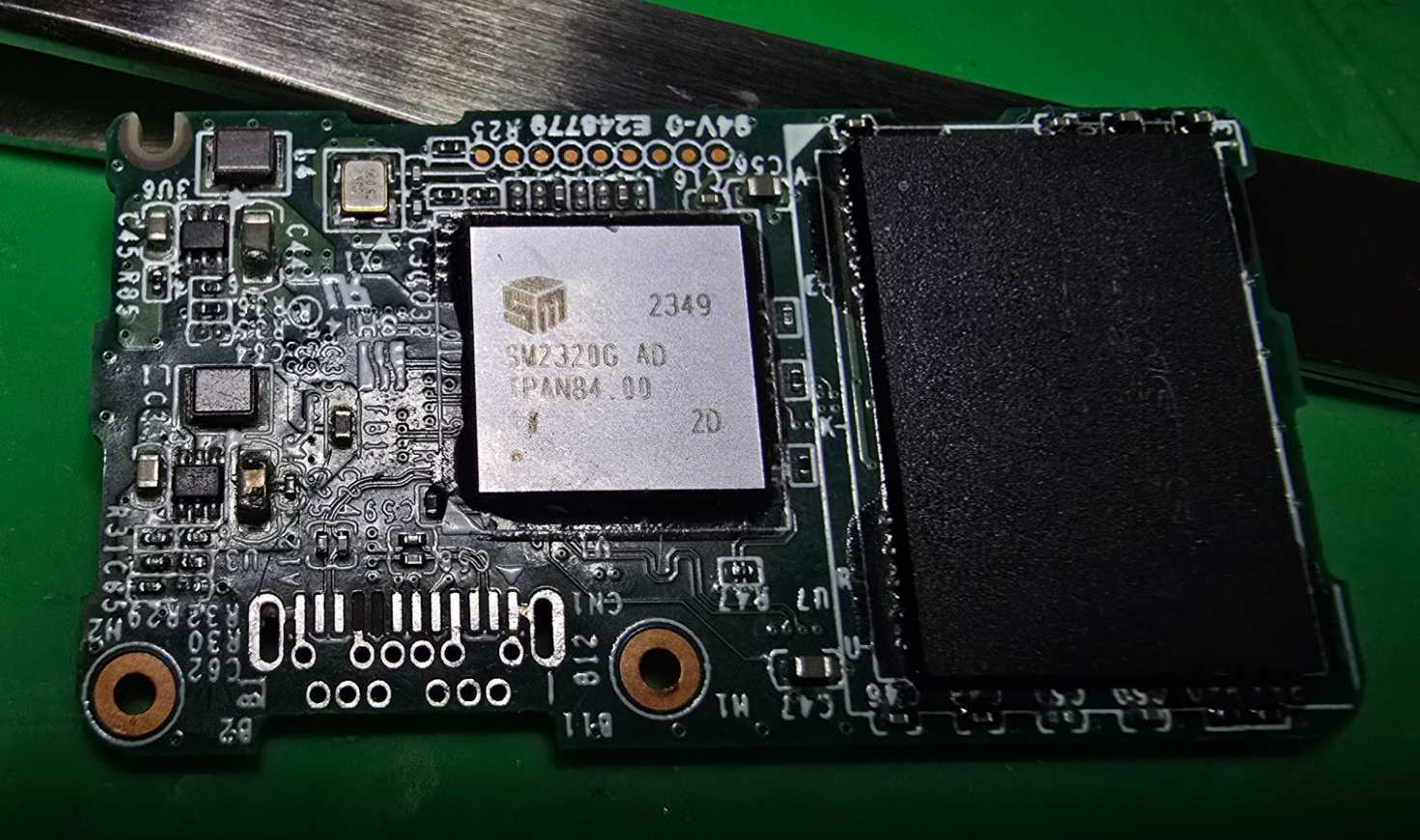

If you loose closely at the design, you'll find there's three pairs of 2 pads, which run together to resistors

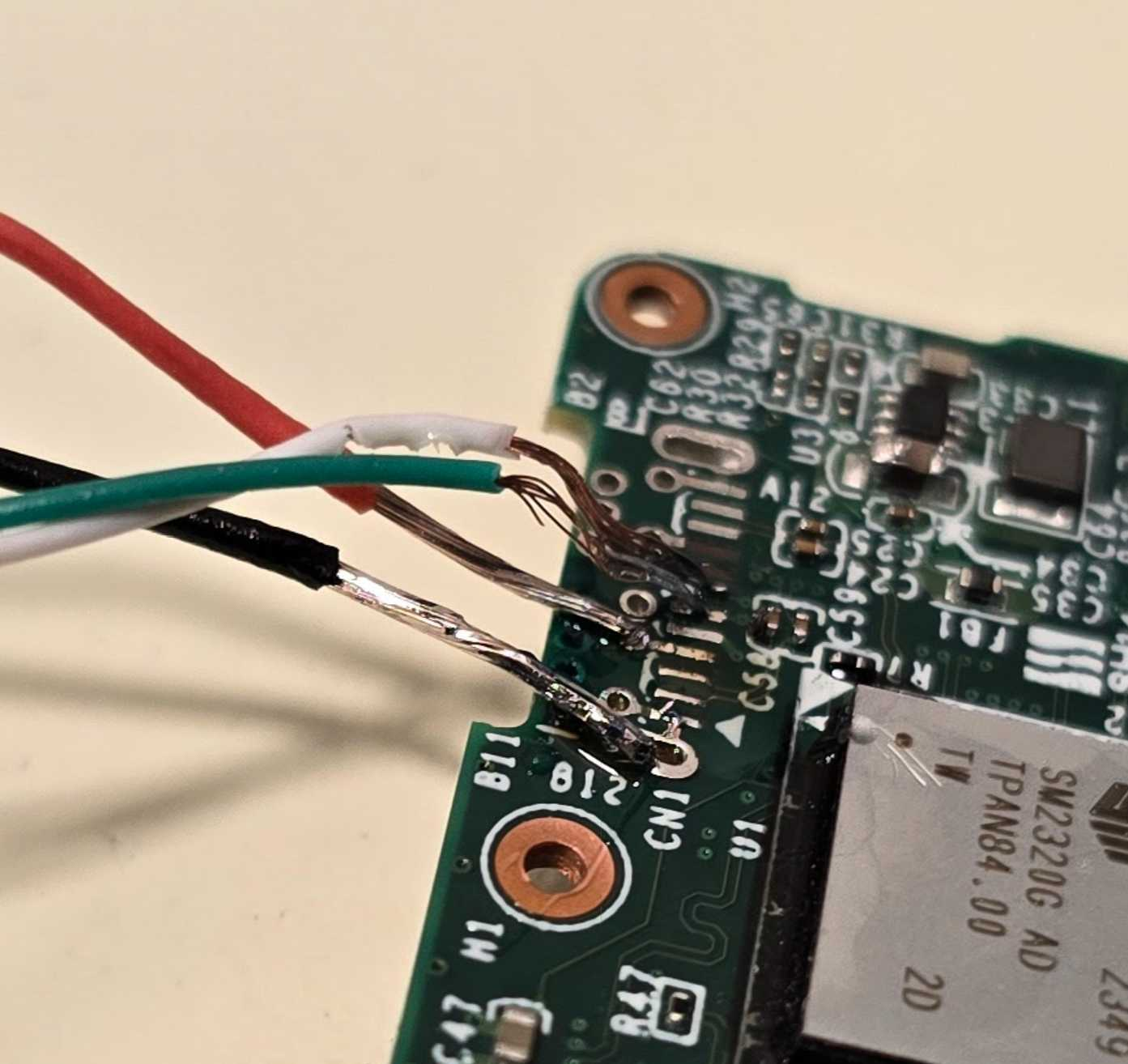

Solder the green & white to those 2 pads & connect to PC.
If not detected at all, then you're on a USB 3.0 lines, so it's not that pair
If it's detected, but Device Manager gives an error, then you found it! But Green & white are reversed. So swap them & that should solve it

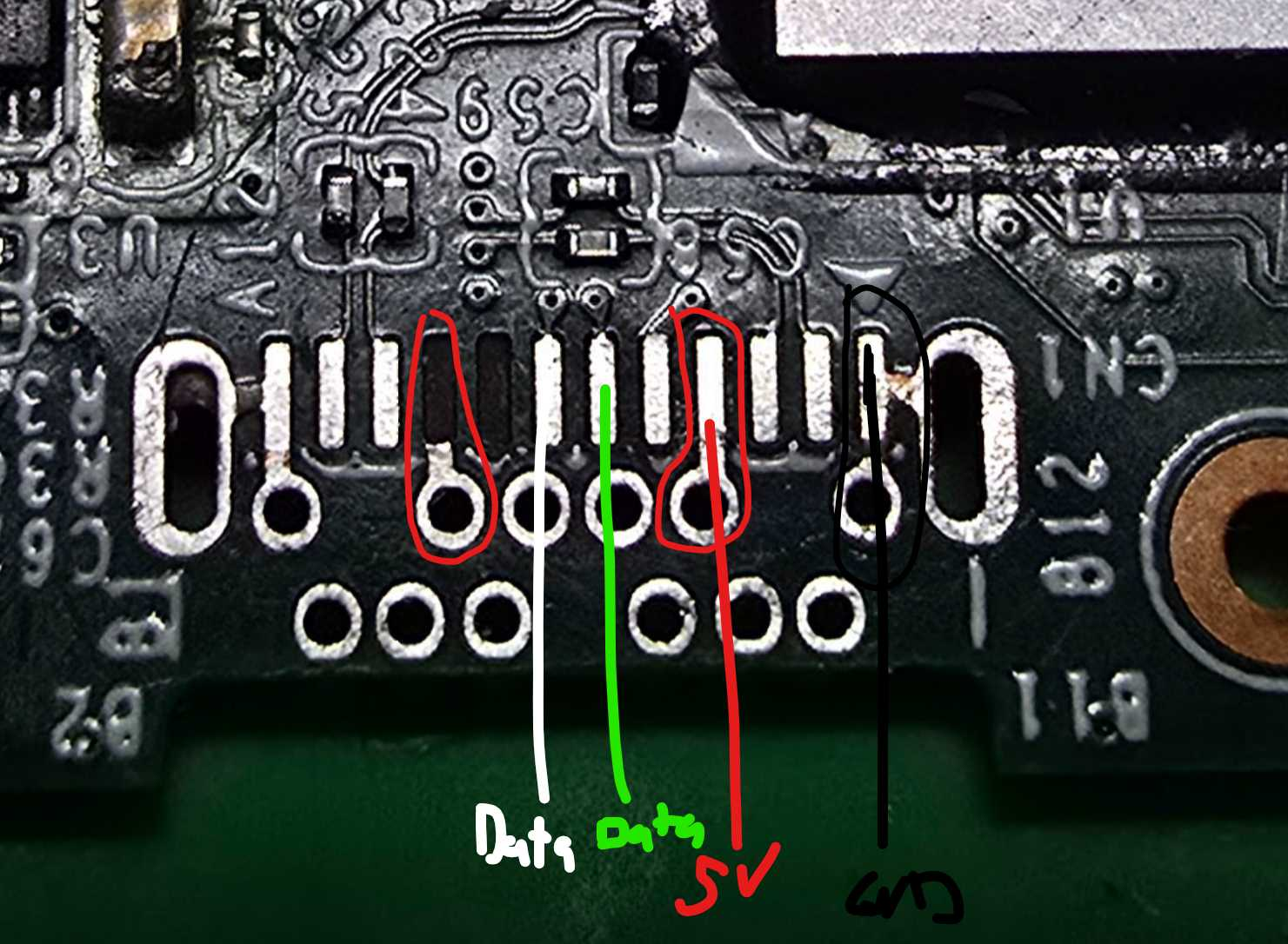

I've attached a diagram of how I wired them
Then...
This board came in looking really bad, so I didn't even bother trying to repair it.
Instead, I went straight for a CPU Swap
Unfortunately, still working on it.
First attempt, it was just bootlooping
I checked UFS health & it looked good
Will keep working on this & let you know how it goes.
Anyone else have trouble with Samsung S21 Ultra CPU Swaps?
I feel like these are the most difficult cases I have to deal with & I have 2 more in my queue 🥹
A guy flew in from New York to have me try to recover the data for his Billionaire client, who was willing to pay anything to get data from his smashed iPhone 13 Pro Max.
It was hit with a 🔨
Unfortunately, the patient arrived dead at the operating table 😭
The NAND had a crack running along the side, plus it was a curved.
When attempting to remove the NAND, the top layer of it just flew off
Majority of the pads were ripped from the bottom.
This was probably the worst damage I've ever seen 🥹
