So I have an iPhone 14 Plus here for data. It was smashed really bad
It came in for No Power. I found there was a short on 2 caps next to NAND & i cleared that & got it to boot

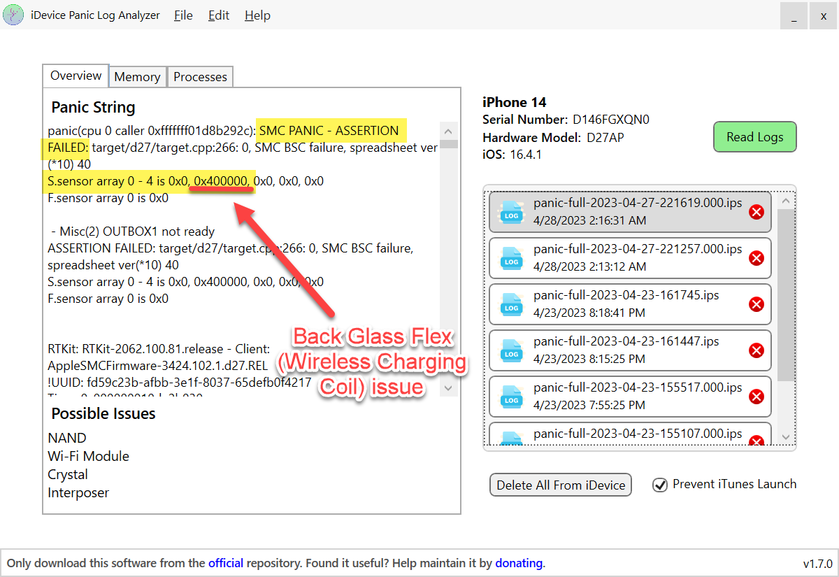

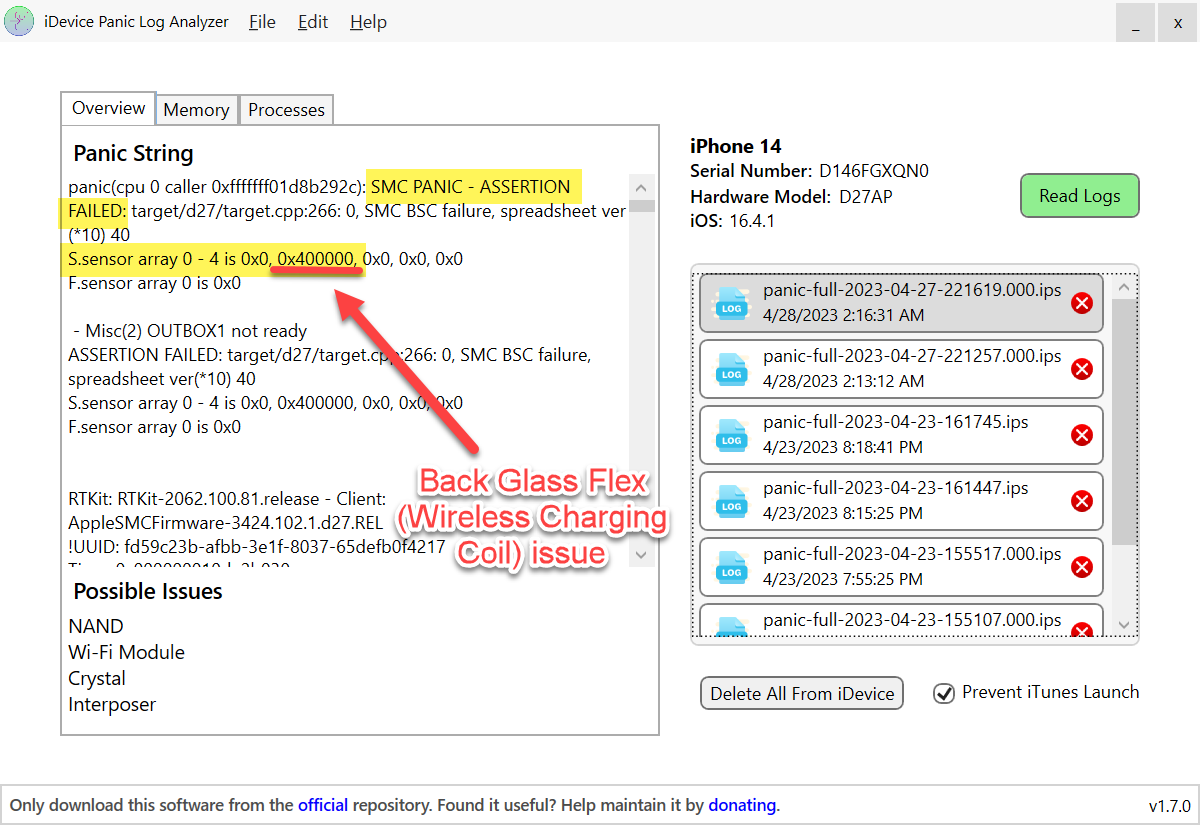

But now, it's restarting every 3 min. I have narrowed it down to the wireless charging coil/back glass flex. See attached pic.
I have a known good iPhone 14 here & it's not restarting. I unplug the back glass & it restarts with 0x400000
I get the same 0x400000 on my 14 Plus. But mine restarts even with back glass plugged in.
I did a diode mode of the connector and found 2 pins are OL, when the known good isn't. I tried to reflow the sandwich to get the 2 pins reconnected, but only had luck getting 1 reading back.
I want to avoid splitting the sandwich, if i can, as it'd be my first 14/14P and I don't want to end up in a worse spot that I am now lol
Anyway.. i'll report back my final results soon!
If you have a Seek Thermal Cam, you're missing out if you don't have a VCC Seek Stand: https://www.vccboardrepairs.com/buy-seek-stand
Injured Gadgets just got these back in stock, so get them while you can!
It can take us a while to build these out sometimes, so they're sometimes out of stock for a while, but we're working towards always having inventory ready to build more as they sell out.
This stand makes using a thermal cam so easy. So much better than any other thermal solution on the market.
It allows you to get real close up (using my Macro Lens), and easily find where the short is coming from.
Plus it's hard free, so you can have your hands free to try to boot the device from DCPS, while having an image that is in focus & not moving around.
You can even record a video through the app, while you inject voltage into the short, so you can go back & see exactly which component was it that was heating up.
Save yourself lots of time by getting a Seek Cam, Stand & Macro Lens! ...
Anyone who is doing game console repairs, knows how many screws you need to remove to access the motherboard.
Especially the PS5, with the 5,000 screws or so.
If you don't already have an electric screwdriver, GET ONE ASAP.
🌟 Cordless Screwdriver with T9 Bit: https://amzn.to/3E5duCj
🌟Extended T9 Bit: https://amzn.to/3c4YJac
It's rechargeable through micro USB and allows you to easily swap the tips out. You can also fold it to be straight or L shape.
Let me know below if you are already using an electric screwdriver 👇👇
My apologies... but it's been over 8 months since I posted a full length YouTube video.
Mainly because it's been super busy at the shop. Maybe it's the warmer weather that caused the demand for data recovery to go up.
But also, we had the pregnancy & then a baby to deal with
This video was recorded back in March but never got around to editing it either
So after back to back to back "no-fix" jobs, I figured I take a break from that stress & try to finish editing the video I started months ago.
So it's finally complete & available to watch (link in the comments)
It's a great video for people who want to learn how to diagnose board level faults, like a blown filter
And how to use your multimeter to find it.
Enjoy!
Basically, all USB flash drive will have USB 2.0 pins. That's just 4 lines that you need for USB communication.
If it's a USB 3.0 drive, it will have those 4 pins + the extra 3.0 data pins
Get any USB A cable & splice it to find the 4 wires, Black, Red, Green, White. Then proceed with the next steps:
Find the 5V power rail, which typically is a thick trace or there's a duplicate pin. I found that by probing around & found the 2 pins that had continuity to each other
Ground is just any anchor
Then the tricky part was the 2 data lines, green & white
If you loose closely at the design, you'll find there's three pairs of 2 pads, which run together to resistors
Solder the green & white to those 2 pads & connect to PC.
If not detected at all, then you're on a USB 3.0 lines, so it's not that pair
If it's detected, but Device Manager gives an error, then you found it! But Green & white are reversed. So swap them & that should solve it
I've attached a diagram of how I wired them
Then...
This board came in looking really bad, so I didn't even bother trying to repair it.
Instead, I went straight for a CPU Swap
Unfortunately, still working on it.
First attempt, it was just bootlooping
I checked UFS health & it looked good
Will keep working on this & let you know how it goes.
Anyone else have trouble with Samsung S21 Ultra CPU Swaps?
I feel like these are the most difficult cases I have to deal with & I have 2 more in my queue 🥹
