Smashed iPhone X for data recovery

This iPhone X came in for No Touch. If you see the 2nd pic, you'll see how bad the housing was.

I knew from the pic my b2b customer sent me, it wasn't gonna be good.

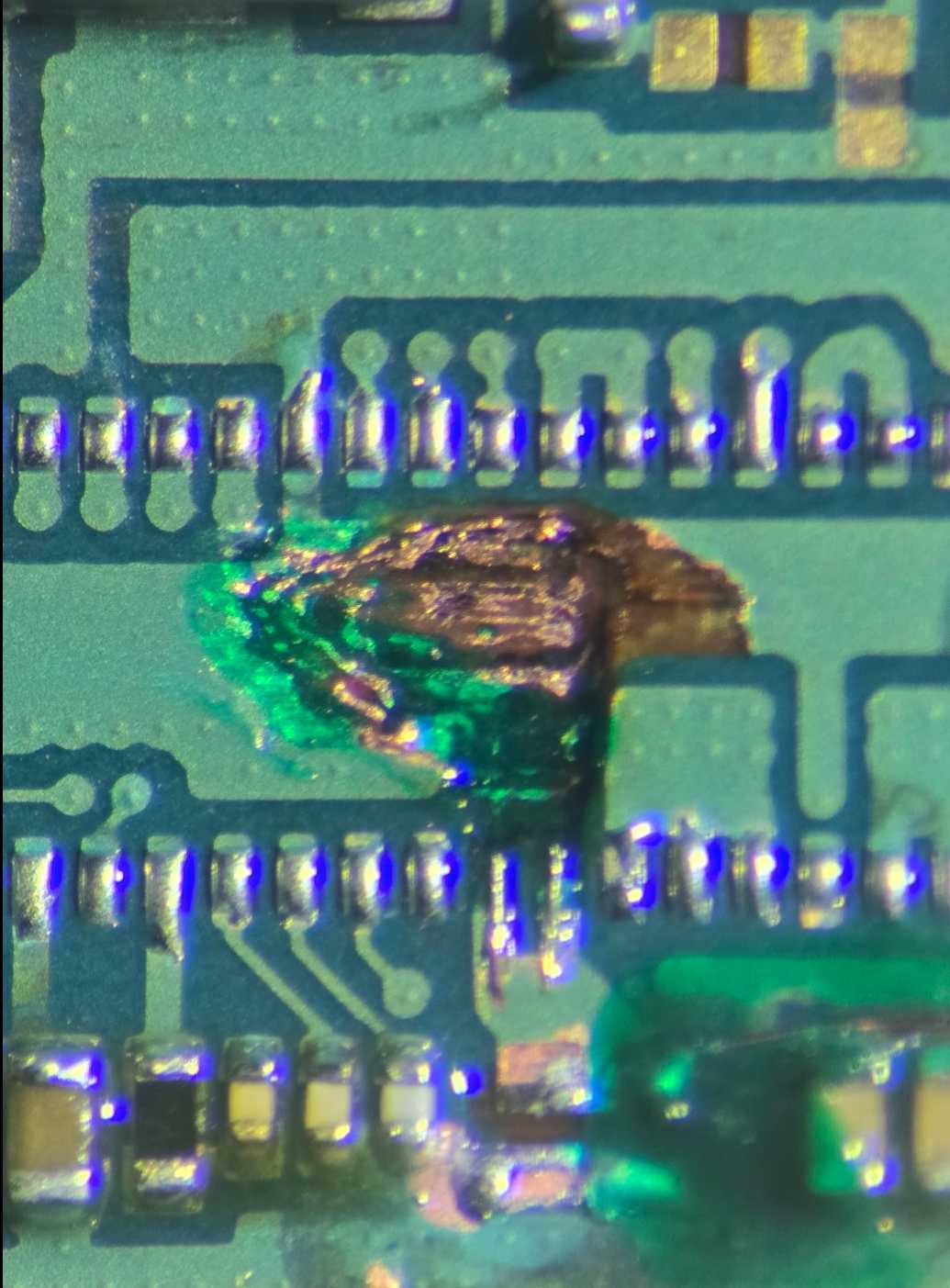

Sure enough, a million pads were ripped.

After checking each pad that was ripped, none were touch related. But still no touch.

I checked on the top side of the board & found a coil and 2 caps that connect to Acorn (touch driver) that were crushed. Replaced them & got touch working in the jig with a known good bottom board.

But sadly, the phone wouldn't unlock. It would hang on the last digit of the pin code.

Many of the pads that were ripped, were NFC, so I fixed them using solder lugs, but still same symptoms.

So i decided to chance it & do an update.
After the update, it finally went to the "Swipe to recover" screen. This screen is basically what updates the phone's NFC data, which after allows access to the customer's data.

Well, at least that's how I see it based on my experience.

After that, I got in & got the data! 🙌

What a fun one.
