Tonight, got an iPhone 11 Pro Max that came in with No WiFi and would not activate.
So basically, it was stuck on the Hello screen.
When you click the "i" it would only show the SN. No IMEI.
When I tried to activate via 3U Tools, it would fail
3u tools will show N/A in the IMEI field.
So clearly, this has WiFi and Baseband issues.
For 11 Pro Max (and similar models), i followed these steps to resolve it
1. Split the sandwich
2. Cleaned the flux off the pads
3. tested in the iSocket Jig
4. I saw WiFi was working now
5. IMEI was still missing & phone will not activate via 3u tools
This is because when you restore an iPhone with baseband problems, you have to restore it again once you fix the board issue.
6. So i restored it
7. IMEI was now present in the "info" screen and 3u tools
8. The phone activated
9. The Control Panel showed "No SIM" which means baseband is good and wifi/bt buttons were not grayed out, so they're working too
10. I was doing all this testing in the jig, so we know the top and bottom boards are fine
11. So now to "reball" the sandwich
12. But, no need. If you clean split, you can just re-add fresh flux and squish the board back down together once the bottom heater has flowed the solder.
13. Put the board back into the housing & now it's fully functional!
This whole process only took about 30 min (or less).
Let me know if you found this helpful or if you have any questions as to why I did what I did.
🙏
If you have a Seek Thermal Cam, you're missing out if you don't have a VCC Seek Stand: https://www.vccboardrepairs.com/buy-seek-stand
Injured Gadgets just got these back in stock, so get them while you can!
It can take us a while to build these out sometimes, so they're sometimes out of stock for a while, but we're working towards always having inventory ready to build more as they sell out.
This stand makes using a thermal cam so easy. So much better than any other thermal solution on the market.
It allows you to get real close up (using my Macro Lens), and easily find where the short is coming from.
Plus it's hard free, so you can have your hands free to try to boot the device from DCPS, while having an image that is in focus & not moving around.
You can even record a video through the app, while you inject voltage into the short, so you can go back & see exactly which component was it that was heating up.
Save yourself lots of time by getting a Seek Cam, Stand & Macro Lens! ...
Anyone who is doing game console repairs, knows how many screws you need to remove to access the motherboard.
Especially the PS5, with the 5,000 screws or so.
If you don't already have an electric screwdriver, GET ONE ASAP.
🌟 Cordless Screwdriver with T9 Bit: https://amzn.to/3E5duCj
🌟Extended T9 Bit: https://amzn.to/3c4YJac
It's rechargeable through micro USB and allows you to easily swap the tips out. You can also fold it to be straight or L shape.
Let me know below if you are already using an electric screwdriver 👇👇
One of the perks of being an active member is access to our private Facebook Messenger group chat.
We’ve got a solid group of techs in there discussing panic logs, 3 minute restarts, board level repairs, troubleshooting, tools, weird cases, and sharing fixes.
It’s not a training course, just a chill place for techs to help each other out and talk shop.
If you want in, comment your Facebook profile link below or DM me on Facebook and I’ll add you.
This 15 Pro came in for data recovery. It came in smashed badly.
I split the sandwich & tested in the jig with a known good bottom board & all known good parts
But yet, it still restarted.
That means it had a board level issue causing it.

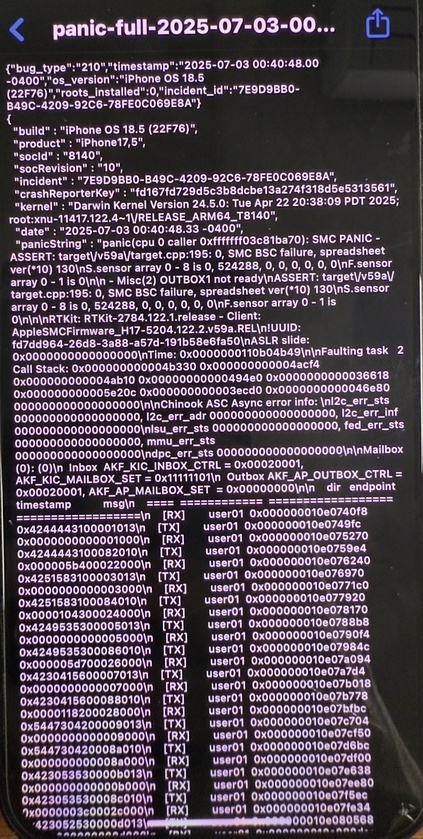

I found the panic log said the sensor array code was 0x80000
This was not a previously documented error code, so I had nothing to go by
Based on the backstory, I started checking everything on the board. Diode mode all the common connectors. But nothing.
Then I remembers the 14 Pros require the Gyro to work. Sure enough, rotation was not working
I found the Gyro IC & noticed it was loose
I pulled & it had some ripped pads.
Rebuilt the pads, placed the IC back & it worked! I backed up the data.
Since the Repair Wiki is not longer updateable, I will be posting the new panic logs I find on my Panic Log Cheat Sheet, only available to active members
You can access my Panic Log Cheat Sheet here:
https://www.vccboardrepairs.com/cheat-sheet
...
Crazy recovery job I wrapped up this week on an iPhone 14 Pro Max that was mailed in all the way from Nebraska.
Customer told me the phone had been run over multiple times, and honestly, after opening it up, I thought this was going to end up being a no-fix. The phone was absolutely destroyed. The housing was twisted, the board was severely bent, and the damage near the NAND had me expecting the worst.

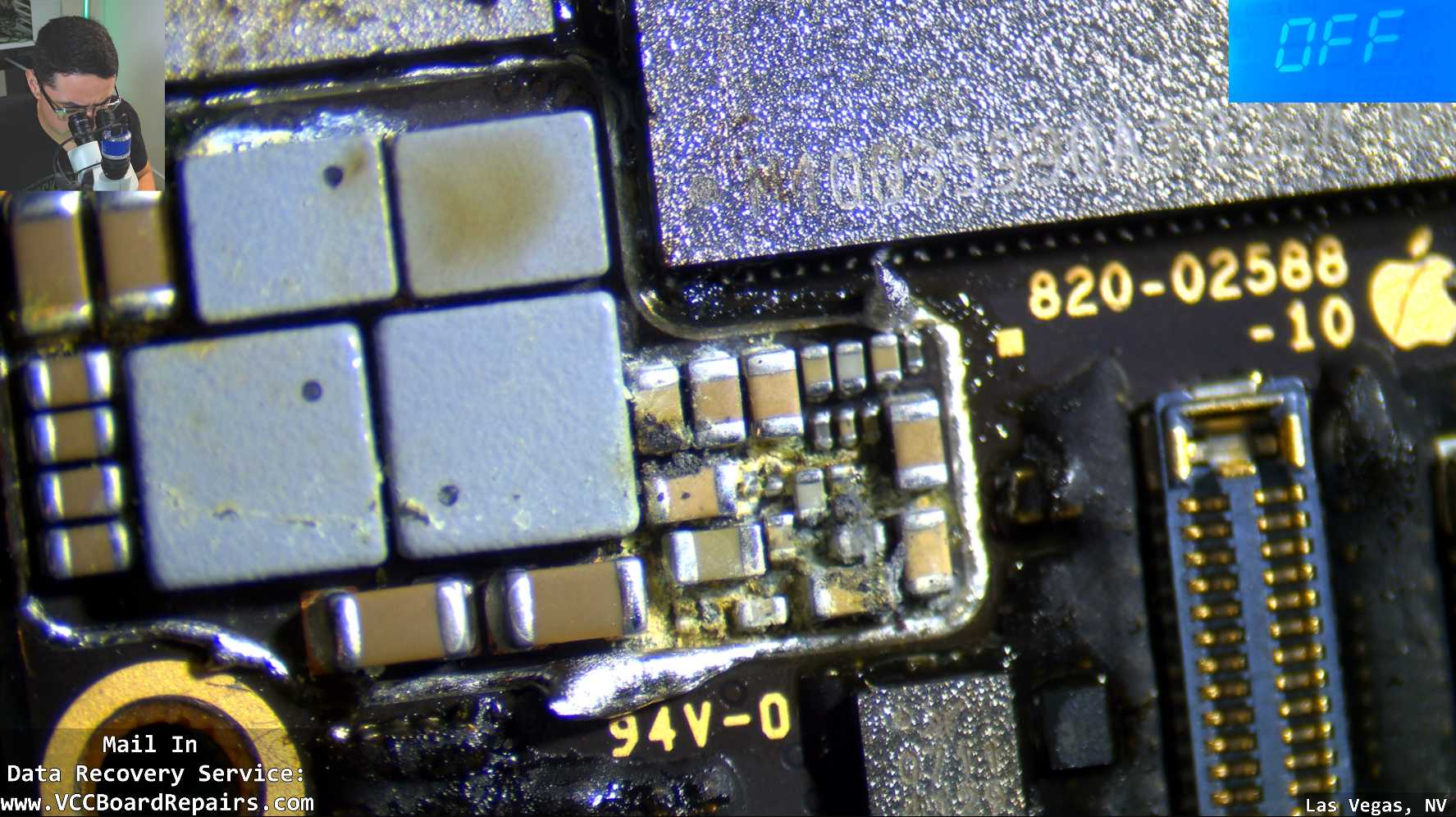

First thing I did was remove the board and inspect everything under the microscope. The bend near the NAND and CPU area was pretty extreme, which is usually a very bad sign on these newer iPhones. In many cases, once the board bends this badly, the CPU or NAND can crack internally and the data is gone for good.
